DAB EUROSWIM 50M SWIMMING POOL PUMP
INSTALLATION & USE

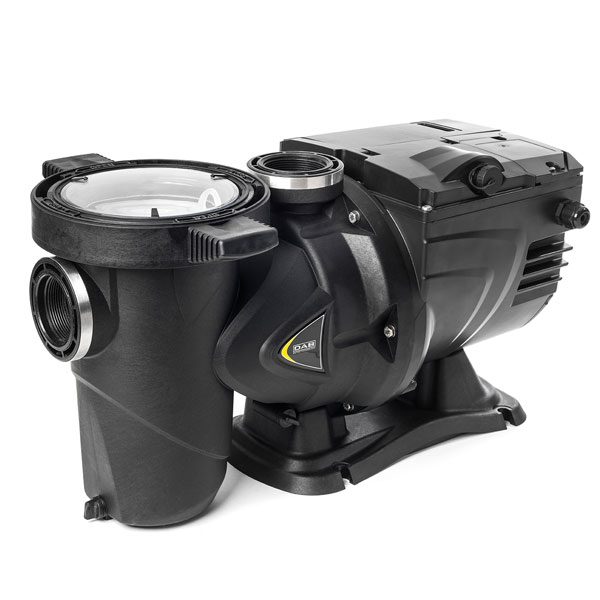

The DAB EUROSWIM 50M swimming pool pumps are developed for water circulation and filtration in domestic and residential swimming pools. The DAB EUROSWIM range are high performance self-priming centrifugal electric pumps with built-in high capacity prefilter. These pumps are extremely quiet and highly reliable and feature a completely watertight motor.
Also suitable for specific applications requiring handling of aggressive liquids in the fishing, agricultural, and industrial sector
CONSTRUCTION
Fibreglass reinforced technopolymer pump body.
Transparent antioxidant polycarbonate prefilter cover ensuring constant visibility over the long period.
Nylon strainer.
Fibreglass reinforced technopolymer impeller.
Reinforced technopolymer diffuser.
Carbon / alumina / NBR / AISI 316 mechanical seal.
NBR pump body O-ring, AISI 316 stainless steel reinforcement ring nuts and screws.
Butterfly filling and drain plugs that can be removed and refitted without tools.
Self-priming: up to 2 m (without check valve).
P2 Nominal kW: 0.33
Port diameter: 2”
Standard voltage:
single-phase 220/240 V – 50 Hz.
Protection class of the motor and the terminal box: IP55.
Protection class at the terminal board: IP 55.
Insulation class: F

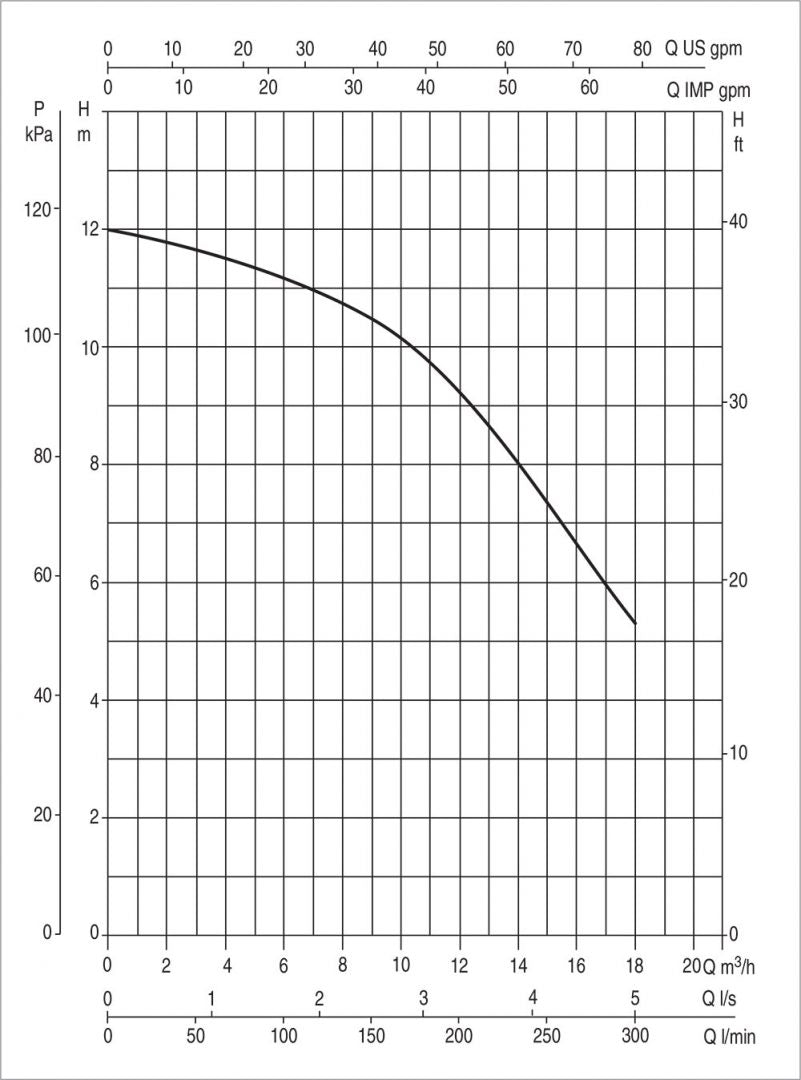

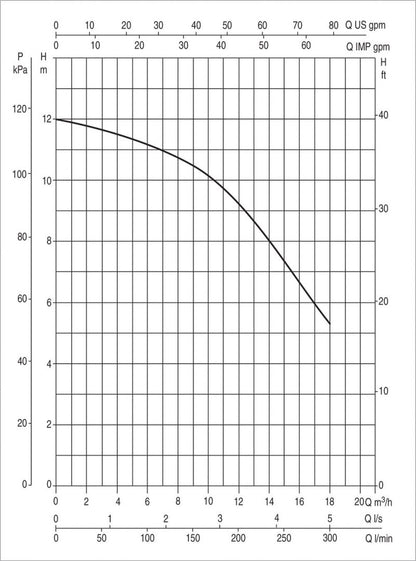

PERFORMANCE RANGE
Flow rate up to 300 l/min (18 m³/h)
Head up to 12m
APPLICATION LIMITS
Maximum ambient temperature: 50 °C.
DAB EUROSWIM 75M SWIMMING POOL PUMP
INSTALLATION & USE
The DAB EUROSWIM 75M swimming pool pumps are developed for water circulation and filtration in domestic and residential swimming pools. The DAB EUROSWIM range are high performance self-priming centrifugal electric pumps with built-in high capacity prefilter. These pumps are extremely quiet and highly reliable and feature a completely watertight motor.
Also suitable for specific applications requiring handling of aggressive liquids in the fishing, agricultural, and industrial sector
CONSTRUCTION
Fibreglass reinforced technopolymer pump body.
Transparent antioxidant polycarbonate prefilter cover ensuring constant visibility over the long period.
Nylon strainer.
Fibreglass reinforced technopolymer impeller.
Reinforced technopolymer diffuser.
Carbon / alumina / NBR / AISI 316 mechanical seal.
NBR pump body O-ring, AISI 316 stainless steel reinforcement ring nuts and screws.
Butterfly filling and drain plugs that can be removed and refitted without tools.
Self-priming: up to 2 m (without check valve).
P2 Nominal kW: 0.5
Port diameter: 2”
Standard voltage:
single-phase 220/240 V – 50 Hz.
Protection class of the motor and the terminal box: IP55.
Protection class at the terminal board: IP 55.
Insulation class: F

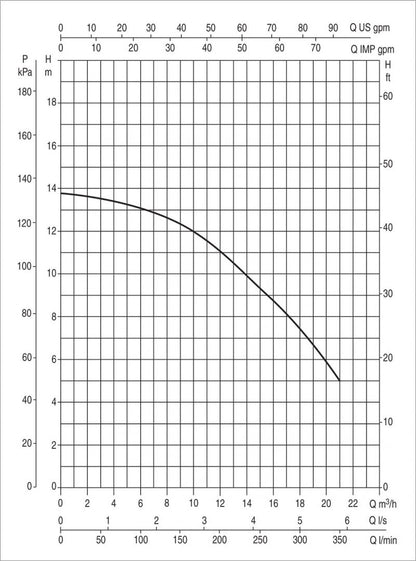

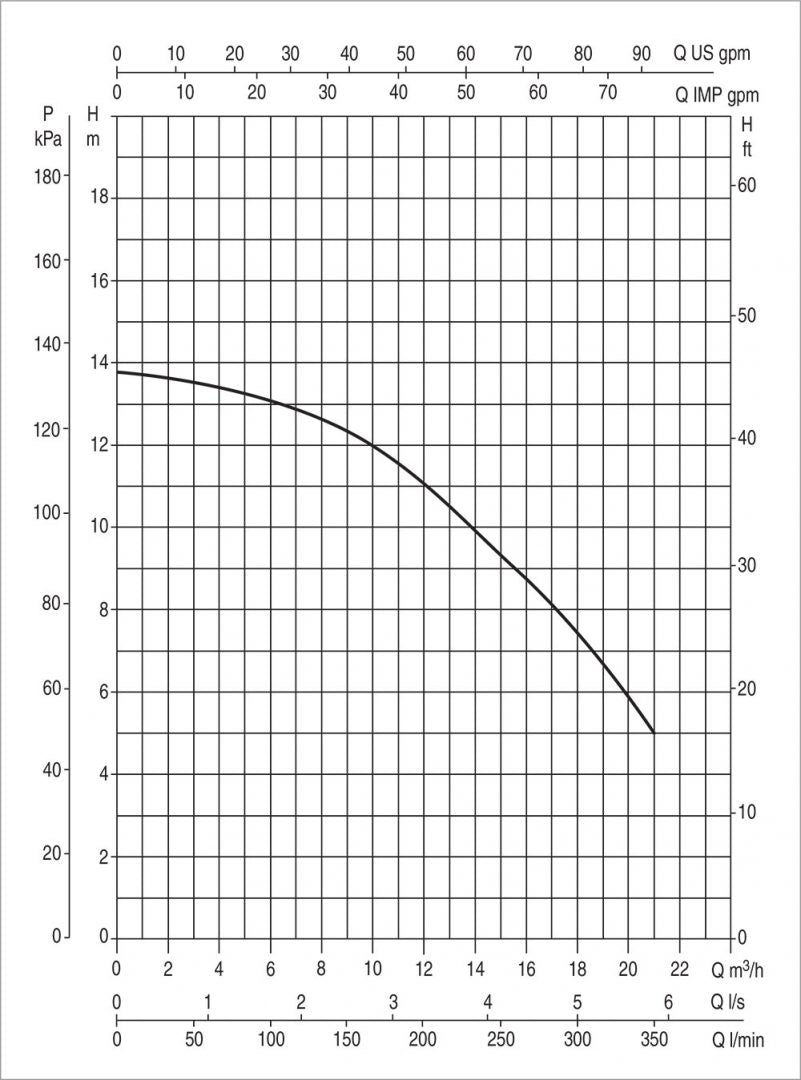

PERFORMANCE RANGE
Flow rate up to 350 l/min (21 m³/h)
Head up to 13.8m
APPLICATION LIMITS
Maximum ambient temperature: 50 °C.
DAB EUROSWIM 100M SWIMMING POOL PUMP
INSTALLATION & USE
The DAB EUROSWIM 100M swimming pool pumps are developed for water circulation and filtration in domestic and residential swimming pools. The DAB EUROSWIM range are high performance self-priming centrifugal electric pumps with built-in high capacity prefilter. These pumps are extremely quiet and highly reliable and feature a completely watertight motor.
Also suitable for specific applications requiring handling of aggressive liquids in the fishing, agricultural, and industrial sector
CONSTRUCTION
Fibreglass reinforced technopolymer pump body.
Transparent antioxidant polycarbonate prefilter cover ensuring constant visibility over the long period.
Nylon strainer.
Fibreglass reinforced technopolymer impeller.
Reinforced technopolymer diffuser.
Carbon / alumina / NBR / AISI 316 mechanical seal.
NBR pump body O-ring, AISI 316 stainless steel reinforcement ring nuts and screws.
Butterfly filling and drain plugs that can be removed and refitted without tools.
Self-priming: up to 2 m (without check valve).
P2 Nominal kW: 0.75
Port diameter: 2”
Standard voltage:
single-phase 220/240 V – 50 Hz.
Protection class of the motor and the terminal box: IP55.
Protection class at the terminal board: IP 55.
Insulation class: F

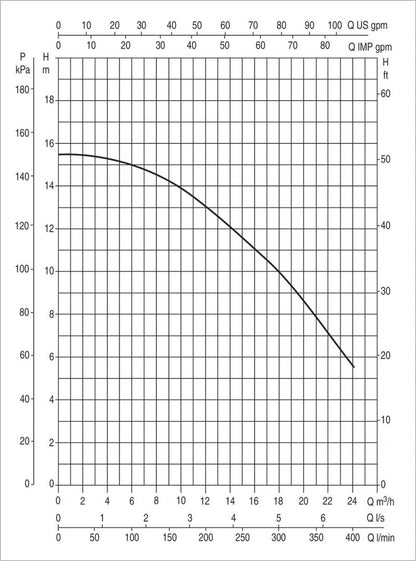

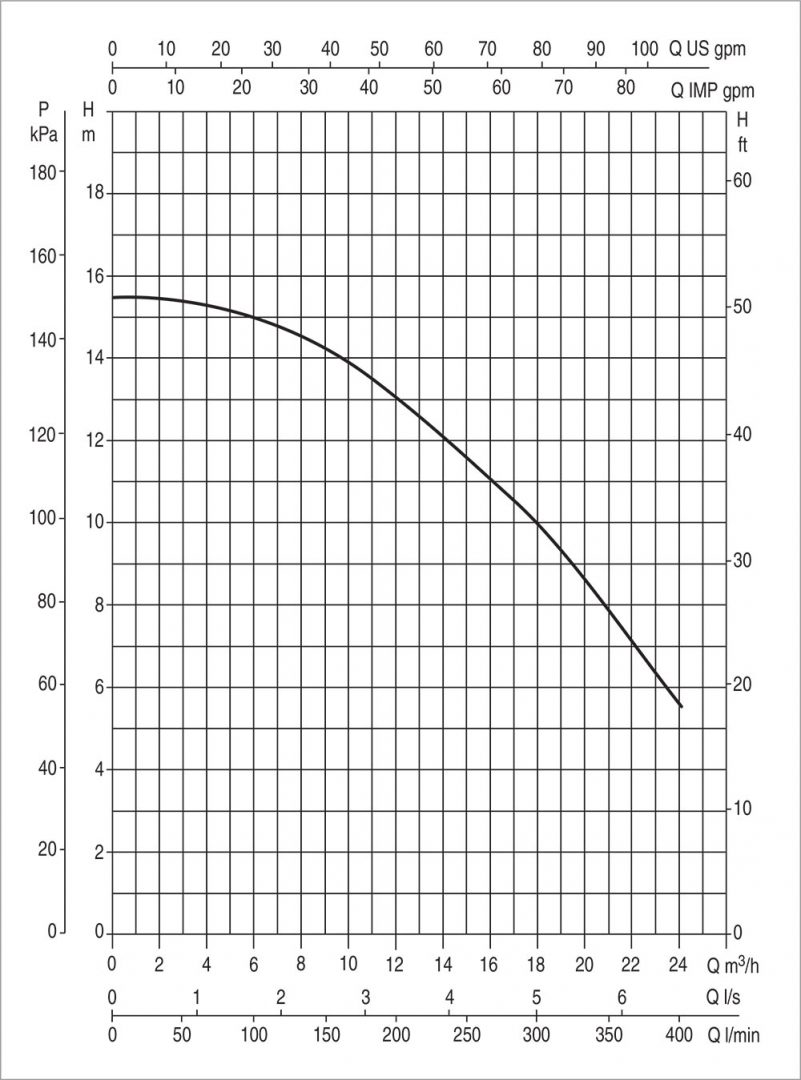

PERFORMANCE RANGE
Flow rate up to 400 l/min (24 m³/h)
Head up to 15.4m
APPLICATION LIMITS
Maximum ambient temperature: 50 °C.
DAB EUROSWIM 150M SWIMMING POOL PUMP
INSTALLATION & USE
The DAB EUROSWIM 100M swimming pool pumps are developed for water circulation and filtration in domestic and residential swimming pools. The DAB EUROSWIM range are high performance self-priming centrifugal electric pumps with built-in high capacity prefilter. These pumps are extremely quiet and highly reliable and feature a completely watertight motor.
Also suitable for specific applications requiring handling of aggressive liquids in the fishing, agricultural, and industrial sector
CONSTRUCTION
Fibreglass reinforced technopolymer pump body.
Transparent antioxidant polycarbonate prefilter cover ensuring constant visibility over the long period.
Nylon strainer.
Fibreglass reinforced technopolymer impeller.
Reinforced technopolymer diffuser.
Carbon / alumina / NBR / AISI 316 mechanical seal.
NBR pump body O-ring, AISI 316 stainless steel reinforcement ring nuts and screws.
Butterfly filling and drain plugs that can be removed and refitted without tools.
Self-priming: up to 2 m (without check valve).
P2 Nominal kW: 1.1
Port diameter: 2”
Standard voltage:
single-phase 220/240 V – 50 Hz.
Protection class of the motor and the terminal box: IP55.
Protection class at the terminal board: IP 55.
Insulation class: F

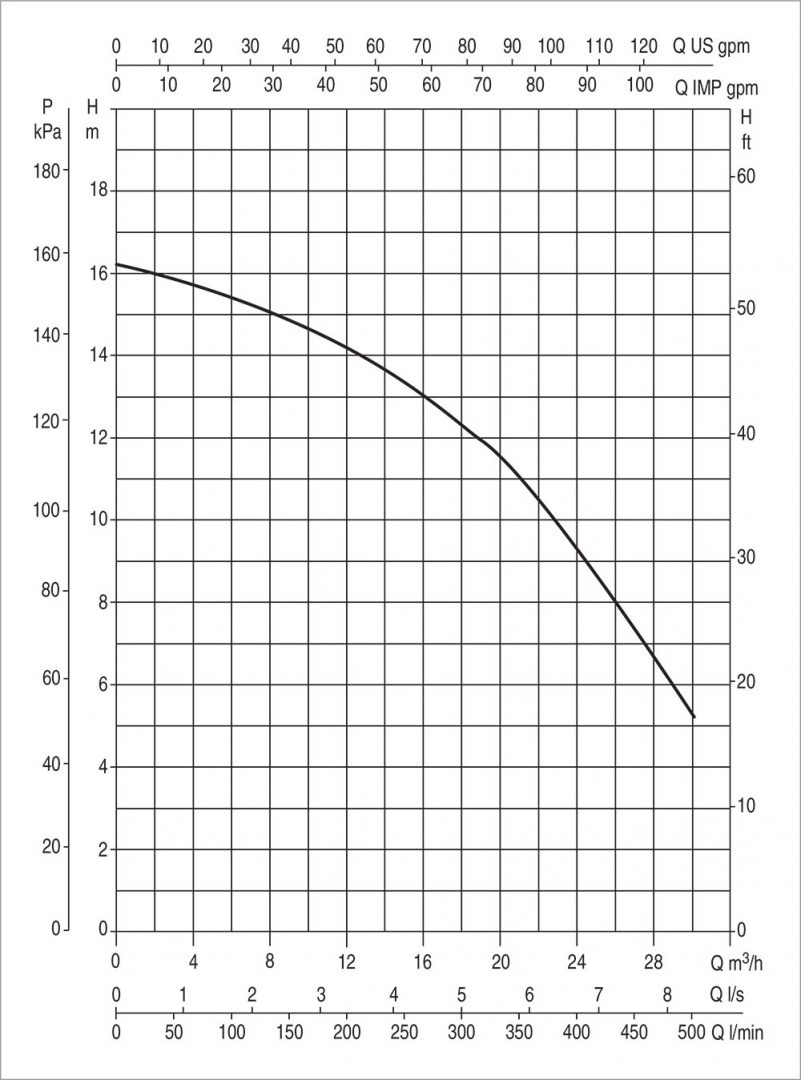

PERFORMANCE RANGE
Flow rate up to 500 l/min (30 m³/h)
Head up to 16.2m
APPLICATION LIMITS
Maximum ambient temperature: 50 °C.
