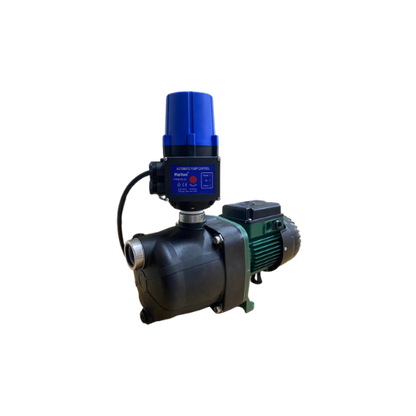

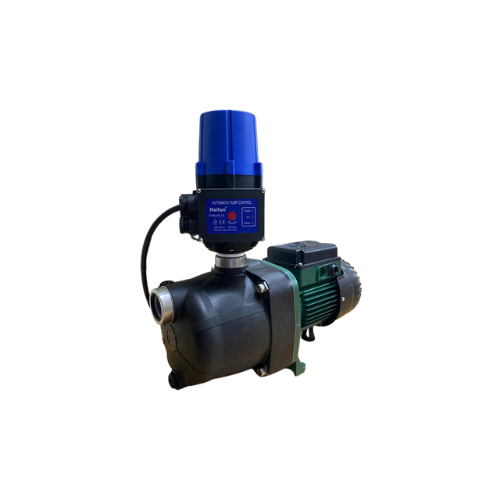

Dab Self Priming Pump - Jetcom 82M 0.6KW 230V

The JET 82 M from DAB is a self-priming centrifugal pump with excellent suctioncapacity even when there are air bubbles. Particularlysuitable for water supply in domestic installations, small scaleagriculture, gardening and wherever self- primingoperation is necessary.

Materials

• Cast iron pump body.
• Motor support in cast iron
• technopolymer impeller, diffuser, Venturi tube and sand guard.
• Stainless steel adjustment rings.
• Carbon/ceramic mechanical seal.
• Asynchronous motor closed and cooled by external ventilation.
• Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version.

Features

• Liquid temperature range:
  from 0°c to +35°C for domestic use
  from 0°C to +40°C for other use
• Pumped liquid characteristics: clean , free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral.
• Maximum ambient temperature: +40°C
• Protection level: IP 44 (IP 55 terminal board protection).
• Insulation class: F.
