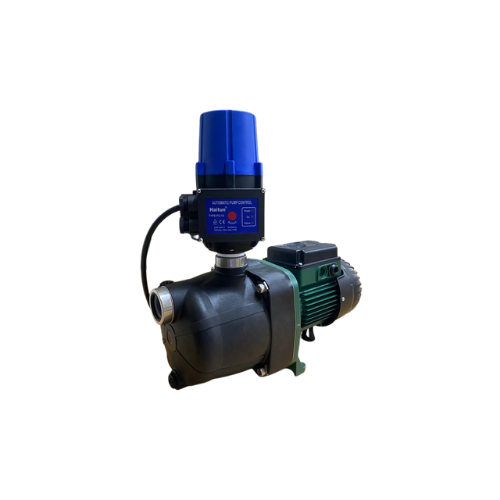

The JET 102 M from DAB is a self-priming centrifugal pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations, small scale agriculture, gardening and wherever self- priming operation is necessary.
Materials
- Cast iron pump body.
- Motor support in cast iron
- technopolymer impeller, diffuser, Venturi tube and sand guard.
- Stainless steel adjustment rings.
- Carbon/ceramic mechanical seal.
- Asynchronous motor closed and cooled by external ventilation.
- Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version.
Features
- Liquid temperature range:
from 0 °c to +35 °C for domestic use
from 0 °C to +40 °C for other use
- Pumped liquid characteristics: clean , free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral.
- Maximum ambient temperature: +40 °C
- Protection level: IP 44 (IP 55 terminal board protection).
- Insulation class: F.
