Resun large Air Pumps

LP-20

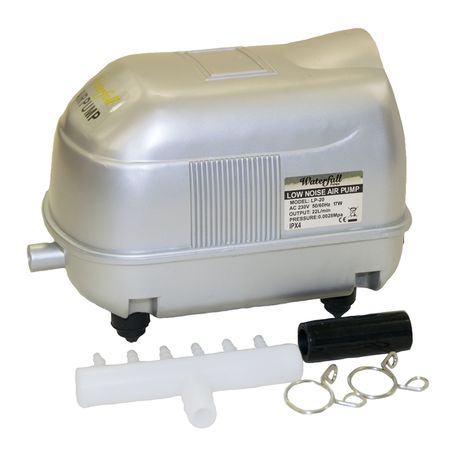

Waterfall Resun Air Pump LP-20
The Resun Air Pump LP20 quietly delivers a maximum air output of 1320 L/hr (22 litre per minute), which is suitable for the smaller fish and koi ponds. It should be housed in a low dust environment, but can withstand rain and water sprinkling.
Installation hint: To increase the life of the rubber diaphragms, the unit must have back pressure.
Also used for: Aquariums, aquaculture pond aeration, commercial and industrial water aeration, Bubble baths etc
FEATURES

• Very quiet - uses electromagnetic linear diaphragm technology
• Plastic body
• Voltage/Wattage: 240V / 17W
• Automatic thermal cut-out overload protection
• Cable length: 1.5m
• Max pressure: 0.028MPa / 280 mbar / 2.8 m H2O
• Max air output: 1320L/hr (22 litre per minute)
• Air pump outlet diameter: 16mm
• Must be set-up above the water level or fitted with check valve (eg Valterra)
• Rated IPX4 (meaning - Should be placed in a low dust environment but will tolerate rain and light sprinkling)
• Maximum water depth for placed air stones: 2.2m
• Supplied with a plastic 6 outlet manifold to suit 4mm silicon air line
• Air Pump dimensions: 205mm (L) x 145mm (W) x 165mm (H)
• Weight: Air Pump: 2.25kg. Cartoned pump: 2.65kg

LP20, 17W, 1320 litre per hour, 280 mbar

LP-40

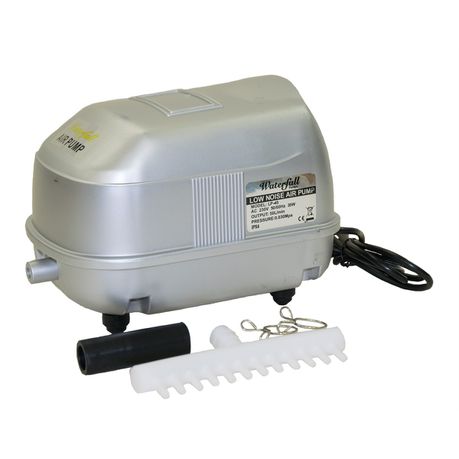

Waterfall Resun Air Pump LP-40
The Resun Air Pump LP40 quietly delivers a maximum air output of 3000 L/hr (50 litre per minute), which is suitable for the vast majority of fish and koi ponds. It should be housed in a low dust environment, but can withstand rain and water sprinkling.
Installation hint: To increase the life of the rubber diaphragms, the unit must have back pressure.
Also used for: Deep water septic tank aeration, Natural swimming pond or pool aeration, Aquaculture pond aeration, Commercial and industrial water aeration, Bubble baths
FEATURES

•  Very quiet - uses electromagnetic linear diaphragm technology
• Plastic body
• Voltage/Wattage: 240V / 35W
• Automatic thermal cut-out overload protection
• Cable length: 1.5m
• Max pressure: 0.03MPa / 0.3 bar / 300 mbar/ 3 m H2O
• Max air output: 3000L/hr (50 litre/minute)
• Air pump outlet diameter: 18mm
• Rated IPX4 (meaning - Should be placed in a low dust environment but will tolerate rain and light sprinkling)
• Must be set-up above the water level or fitted with check valve (eg Valterra)
• Maximum water depth for placed air stones: 2.8m
• Supplied with a plastic 12 outlet manifold to suit 4mm silicon air line
• Air Pump dimensions: 245mm (L) x 175mm (W) x 185mm (H)
• Weight: Air Pump: 4.25kg. Cartoned pump: 4.85kg

LP40, 35W, 3000 litre per hour, 300 mbar

LP-60

The Resun Air Pump LP60 quietly delivers a maximum air output of 4200 litre/hr (70 litre per minute), which is suitable for the vast majority of fish and koi ponds. It must be housed under cover, out of the weather.
Installation hint: To increase the life of the rubber diaphragms, the unit must have back pressure.
Also used for: Deep water septic tank aeration, Natural swimming pond or pool aeration, Aquaculture pond aeration, Commercial and industrial water aeration, Bubble baths
Ideal for driving 3-4 EkoSlim Airlift pumps and moving bed filter of a 10-20,000 litre pond

Features:
- Very quiet - uses electromagnetic linear diaphragm technology
- Cast aluminium body
- Voltage/Wattage: 240V / 60W
- Automatic thermal cut-out overload protection
- Cable length: 1.5m
- Max pressure: 0.037MPa / 0.37 bar / 370 mbar / 3.7 m H2O
- Max air output: 4200L/hr (70 litre/minute)
- Air pump outlet diameter: 20mm
- Rated IPX4 (meaning - Should be placed in a low dust environment but will tolerate rain and light sprinkling)
- Must be set-up above the water level or fitted with check valve (eg Valterra)
- Maximum water depth for placed air stones: 3.5m
- Supplied with a plastic 14 outlet manifold to suit 4mm silicon air line
- Air Pump dimensions: 245mm (L) x 205mm (W) x 210mm (H)
- Weight: Air Pump, 5.45kg. Cartoned pump: 6.3kg
- 60 LPM. Max pressure: 0.037MPa / 0.37 bar / 370 mbar / 3.7 m H2O

LP100

Features:
- Very quiet - uses electromagnetic linear diaphragm technology
- Cast aluminium body
- Voltage/Wattage: 240V / 100W
- Automatic thermal cut-out overload protection
- Cable length: 1.5m
- Max pressure: 0.042 MPa / 0.42 bar / 420 mbar / 4.2 m H2O
- Max air output: 8400L/hr (140 litre per minute)
- Air pump outlet diameter: 20mm
- Rated IPX4 (meaning - Should be placed in a low dust environment but will tolerate rain and light sprinkling)
- Must be set-up above the water level or fitted with check valve (eg Valterra)
- Maximum water depth for placed air stones: 4.0m
- Supplied with a plastic 33 outlet 44mmID manifold to suit 4mm - 8mm silicon air line
- Air Pump dimensions: 270mm (L) x200mm (W) x230mm (H)
- Weight: Air Pump, 6.6kg. Cartoned pump: 7.31kg
- 100 LPM. Max pressure: 0.042 MPa / 0.42 bar / 420 mbar / 4.2 m H2O

LP-200

-Rated Power: 200W
-Flow Rate: 250L/min
-Maximum pressure: 0.045Mpa
-Outlets: 33 on 50mm manifold
