Digital Temperature Controller - Basic

This dedicated digital display temperature controller can set start and stop temperature. The display and control temperature can be set to 0.1℃ with wide temperature control range from -50℃ to 110℃. It is convenient to install and wiring is simple. Widely used in the hatching area, equipment case, air conditioning system, temperature control protection and other fields.

How to use:

Press "UP" button show the starting temperature;

Long press "UP" button until the temperature display flashes, press the "UP" or "Down" button to set the start temperature value;

Press "Down" button show the stop temperature;

Long press "Down" button until the temperature display flashes, press the "UP" or "Down" button to set the stop temperature value.

Wide temperature control range from -50℃ to 110℃.

High temperature control precision of 0.1℃.

LED display shows the results clearly.

1m waterproof probe is equiped for convenient usage.

Widely used in the hatching area, equipment case, air conditioning system, temperature control protection and other fields.

Can be installed directly or embedded in industrial control equipment panel, convenient and quick.

Probe used stainless steel material, waterproof and does not rust easily.

Specification:

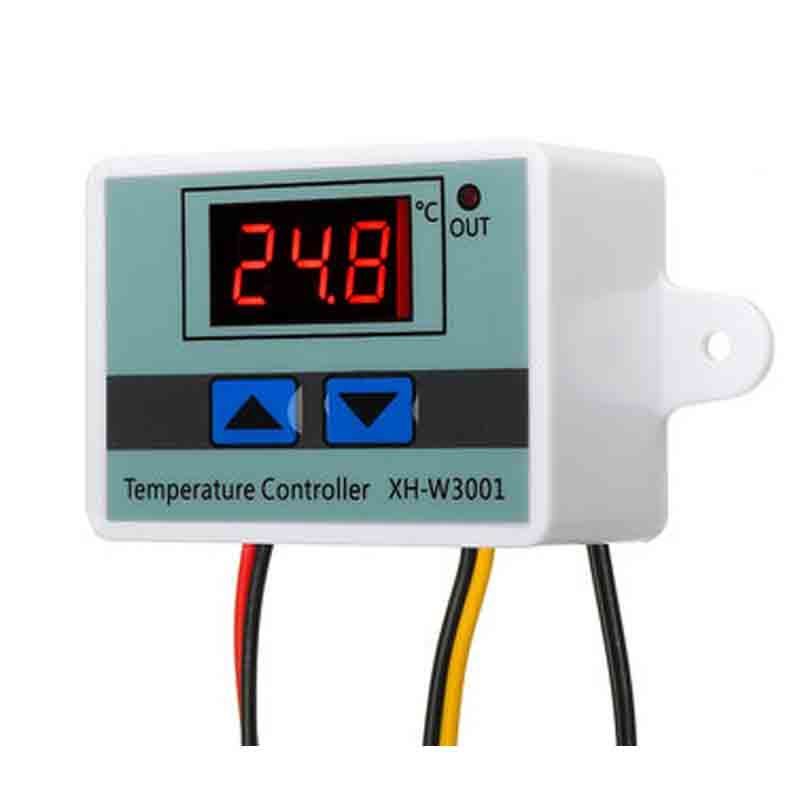

• Model: XH-W3001
• power supply voltage: 220V AC 50Hz
• Main material: ABS
• Voltage: 220V
• Output: 10A(max)
• Temperature Measurement Range: -50~110℃
• Temperature Control Range: -50~110℃
• Temperature Control Precision: 0.1℃
• Load Power: 1500W(220V)
• Measuring Input: NTC10K 1m waterproof probe
• Installation Hole Distance: 7.3cm / 2.87in
• Hole Diameter: 4mm / 0.15in
