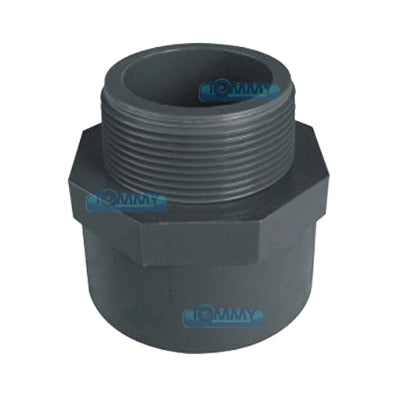

Description
Features:
UPVC products are used for water supply, irrigation, watering, swimming pool systems, chemical industry, food industry, etc.
Dimensions Table
| ITEM CODE | METRIC mm | D | D1 | d | d1 | L | L1 | H | R |
|---|---|---|---|---|---|---|---|---|---|
| 048/0020x0015 | 20 x ½” | 28.6 | 20 | 12 | 16.5 | 38.5 | ½” | ||
| 048/0020x0020 | 20 x ¾” | ||||||||
| * 048/0025x0020x0015 | 25 x 20 x ½” | 25 | 32 | 20 | 17 | 19.5 | 46 | ½” | |
| 048/0025x0020 | 25 x ¾” | 34 | 25 | 17 | 19.5 | 44 | ¾” | ||
| 048/0025x0025 | 25 x 1’’ | ||||||||
| 048/0032x0025 | 32 x 1’’ | 42.3 | 32 | 22 | 25.5 | 52.5 | 1” | ||
| 048/0032x0032 | 32 x 1¼” | ||||||||
| * 048/0040x0032x0025 | 40 x 32 x 1" | 40 | 43 | 32 | 32.5 | 26.5 | 57 | 1” | |
| 048/0040x0032 | 40 x 1¼” | 51.4 | 40 | 30 | 26.5 | 58 | 1¼” | ||
| 048/0040x0040 | 40 x 1½” | ||||||||
| 048/0050x0040 | 50 x 1½” | 62.5 | 50 | 34.5 | 31.5 | 64 | 1½” | ||
| 048/0050x0050 | 50 x 2” |
